Calibration stand for indicators

690,00 915,00

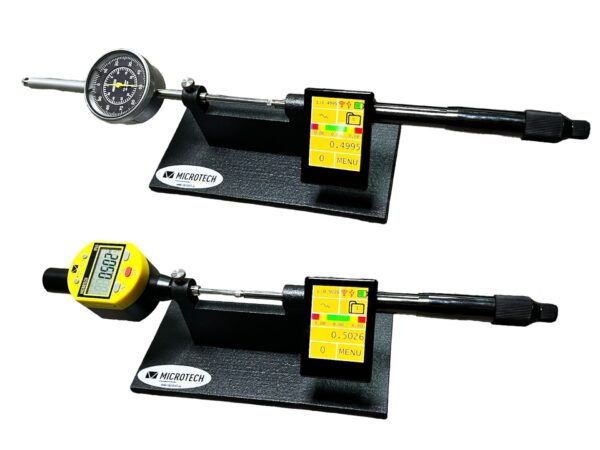

MICROTECH calibrator for dial and digital indicators with range up to 50mm (2 inch).

SKU: 25111026 Categories: ,

*taxes are not included


MICROTECH calibrator for dial and digital indicators with range up to 50mm (2 inch).

Horizontal construction of manual calibration stand gives possibility for quick control dial and digital indicators (recommended for indicator with 0.01mm resolution).

It’s easy install any standard dial or digital indicator with measuring ranges 0-1, 0-3, 0-50, 0-10, 0-12.5, 0-12.7, 0-13, 0-20, 0-25, 0-30 or 0-50mm range (max 0-2’’)

Indicators calibration stand equipped computerized MICROTECH sub-micron micrometer head with internal memory, color Go/NoGo functions, Max/min, Formula function, Timer, manual temperature and error compensation, Graphical mode, etc.

Hi-resolution 2.4″ Color display with Touchscreen provides high usability of sub-micron calibration stand. It’s not necessary spend extra money for batteries, about Built in rechargeable Li-pol battery.

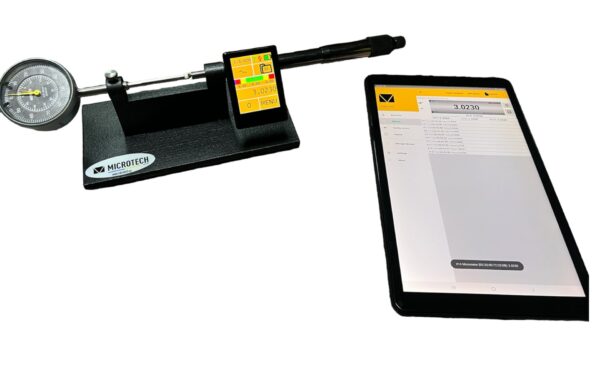

Built in Wireless data transfer module gives possibility transfer measuring data and data from memory to MICROTECH MDS software for Windows, Android, iOS, MacOS. Also in Wireless HID mode it’s possible transfer data to any customers system and app.

it’s possible to use USB socket on MICROTECH computerized instrument to transfer data directly to Windows application with cable from set.

It’s possible manufacturing custom range and configuration calibration stand for customers request.

Additional information

Resolution, mm

Data output

, ,



Meas. range


Micrometer head

Non-rotating, Rotating
