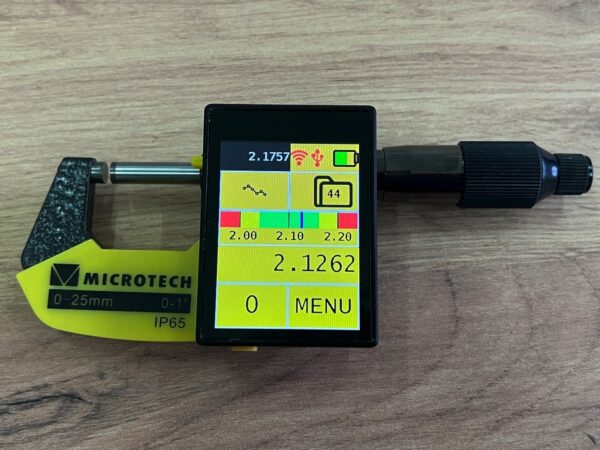

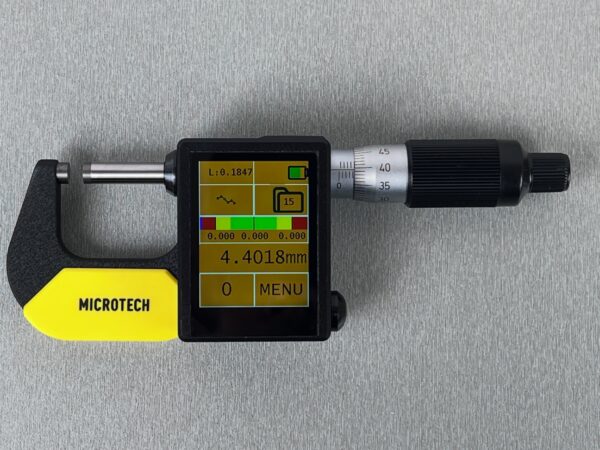

Tablet sub-micron micrometer Industry 4.0
369,00 € – 815,00 €
Tablet micrometers are using computerized measuring system developed and patented by MICROTECH (Patents UA126928, UA99686) with 0.1 micron resolution
*taxes are not included
- Description
- Technical data
- PDF-Datasheet
Description
MICROTECH manufacturing Tablet Sub-micron micrometer adopted to Industry 4.0
Tablet micrometers are using computerized measuring system developed and patented by MICROTECH (Patents UA126928, UA99686) with 0.1 micron resolution

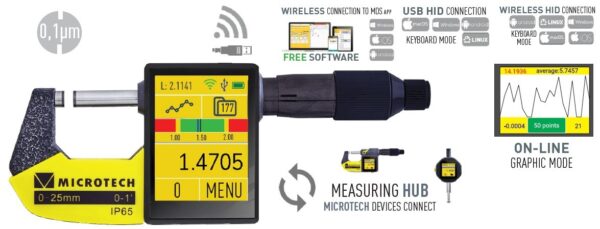

TABLET measuring module of micrometer has such functions :

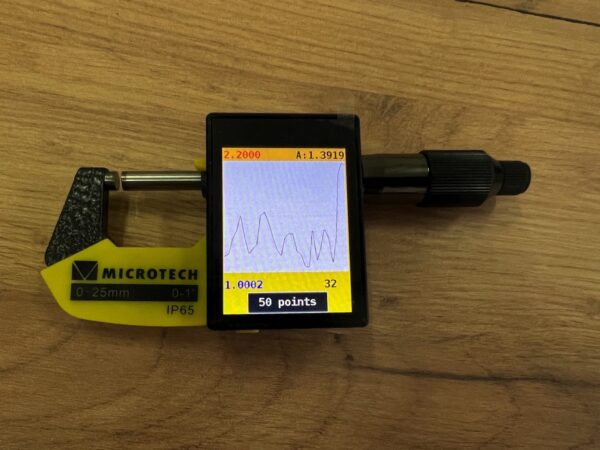

- ON-line GRAPHICAL mode
- Color ANALOG adjustable scale
- HUB Connection (external MICROTECH Wireless device connection)
- 2D Connection possibilities (external device Wireless connection and indication)
- PROBE connection (external indicator or lever indicator Wireless connection) with AUTO mode
- internal MEMORY for 2000 values with Folders system and statistic,
- LIMITS (Go/NoGo) function with color indication,
- PEAK (Max/min),
- TIMER
- FORMULA Ax2+Bx+C
- Manual TEMPERATURE COMPENSATION
- LINEAR compensation
- RESOLUTION selection 0.1/0.01/0.001/0.0001 mm also in inches
- CALIBRATION date control
- Rechargeable Li-Pol battery with micro-USB socket
- FIRMWARE Update with USB cable
- WIRELESS long range data transfer to MICROTECH MDS app for Windows, Android, iOS (FREE versions).
- WIRELESS HID data transfer to any system and app (keyboard mode) with data config possibilities
- Optional MODBUS PLC data output (4 wire, RS-485) with data config possibilities
- USB HID data transfer to any system and app (keyboard mode) with data config possibilities

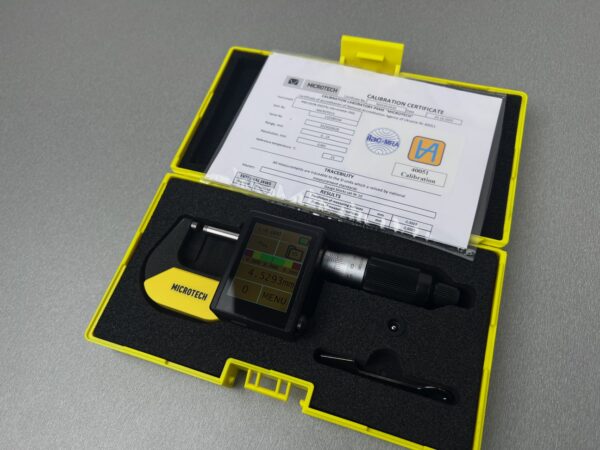

All MICROTECH micrometers has hand finished measuring surfaces (Ra<0,32) and pass metrological control in ISO 17025 ILAC accredited laboratory.
IT’s POSSIBLE TO ADD EXTRA FUNCTIONS & FORMULAS TO INDUSTRY 4.0 MICROMETERS FOR CUSTOMER REQUEST
Additional information
Resolution, mm | |
---|---|
Data output | |
Waterproof | |
Indication | |
Battery | |
Meas. range | 0-25 mm / 0-1 inch, 25-50 mm / 1-2 inch, 50-75 mm / 2-3 inch, 75-100 mm / 3-4 inch, 100-125 mm / 4-5 inch, 125-150 mm / 5-6 inch, 150-175 mm / 6-7 inch, 175-200 mm / 7-8 inch, 200-225 mm / 8-9 inch, 225-250 mm / 9-10 inch, 250-275 mm / 10-11 inch, 275-300 mm / 11-12 inch, 300-350 mm / 12-14 inch, 350-400 mm / 14-16 inch |
