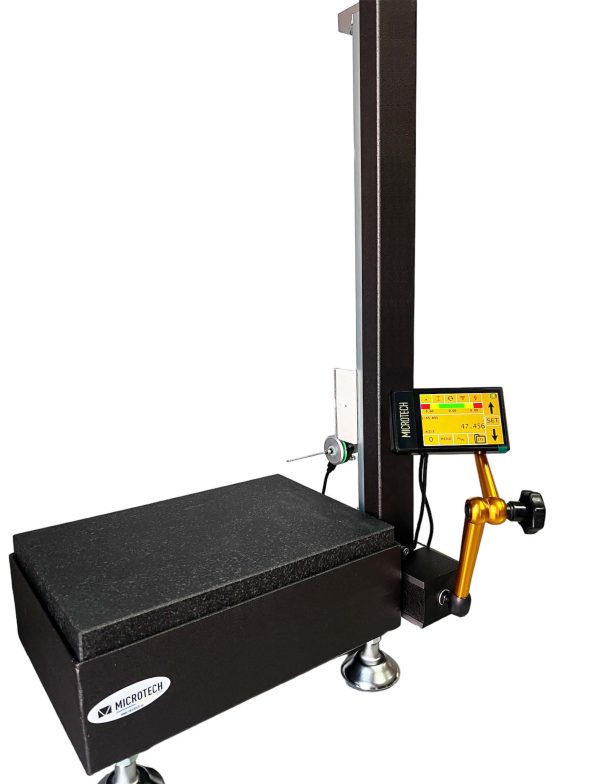

Touchprobe micron tablet height gauge

Description

MICROTECH manufacturing Tablet micron double column height gauges with touchprobe to Industry 4.0

Tablet height gauge using computerized measuring system developed and patented by MICROTECH  (Patents US10184772,  UA174949, UA126928) with 1 micron resolution and has 300, 600  mm (12, 24 inch) ranges.

MICROTECH Tablet height gauge is moving with fine adjustment wheel. Touchprobe improving accuracy and gives possibility make internal measuring.

TABLET measuring module of height gauge has such functions :

• ON-line GRAPHICAL mode
• Color ANALOG adjustable scale
• HUB Connection (external MICROTECH Wireless device connection)
• 2D Connection possibilities (external device Wireless connection and indication)
• PROBE connection  (external indicator or lever indicator Wireless connection) with AUTO mode
• internal MEMORY for 2000 values with Folders system and statistic,
• LIMITS (Go/NoGo) function with color indication,
• PEAK (Max/min),
• TIMER
• FORMULA Ax2+Bx+C
• Manual TEMPERATURE COMPENSATION
• LINEAR compensation
• RESOLUTION selection 0.1/0.01/0.001 mm also in inches
• CALIBRATION date control
• Rechargeable Li-Pol battery with micro-USB socket
• FIRMWARE Update with USB cable
• WIRELESS long range data transfer to MICROTECH MDS app for Windows, Android, iOS (FREE versions). Download MICROTECH MDS app from Link to MDS app’s
• WIRELESS HID data transfer to any system and app (keyboard mode) with data config possibilities
• Optional MODBUS PLC data output (4 wire, RS-485) with data config possibilities
• USB HID data transfer to any system and app (keyboard mode) with data config possibilities

All MICROTECH height gauges has hand finished measuring surfaces (Ra<0,32) and pass metrological control in ISO 17025 ILAC accredited laboratory.

IT’s POSSIBLE TO ADD EXTRA FUNCTIONS & FORMULAS TO INDUSTRY 4.0 HEIGHT GAUGES FOR CUSTOMER REQUEST
