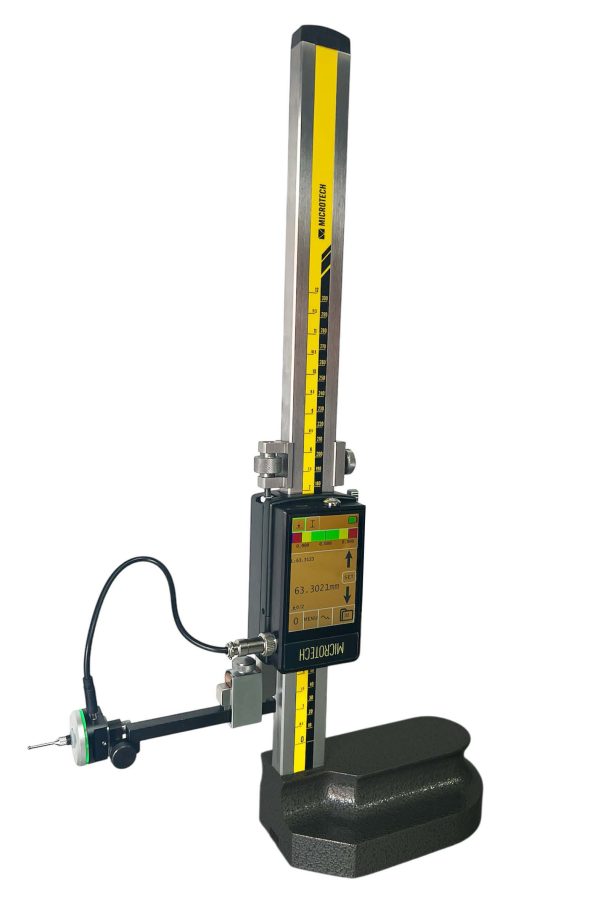

DataMet Touchprobe motorized tablet height gauge
From 1.490,00 €
MICROTECH manufacturing DataMet motorized Touchprobe height gauge adopted to Industry 4.0
Tablet height gauge using computerized indication system MICS system developed and patented by MICROTECH (Patents US10184772, UA174949, UA126928)
*taxes are not included
- Description
- Technical data
- PDF-Datasheet
Description
MICROTECH manufacturing motorized Touchprobe height gauge adopted to Industry 4.0
Tablet height gauge using computerized indication system MICS system developed and patented by MICROTECH (Patents US10184772, UA174949, UA126928)
This height gauge has precision Swiss reading system with 0.5 micron resolution and can be with 300, 600 or 1000mm measuring range.
5-axis Touch-probe improving repeatability and accuracy and gives possibility make internal measuring.
TABLET measuring module of height gauge has such functions :
Tablet height gauge using computerized indication system MICS system developed and patented by MICROTECH (Patents US10184772, UA174949, UA126928)
This height gauge has precision Swiss reading system with 0.5 micron resolution and can be with 300, 600 or 1000mm measuring range.
5-axis Touch-probe improving repeatability and accuracy and gives possibility make internal measuring.
TABLET measuring module of height gauge has such functions :
- ON-line GRAPHICAL mode
- Color ANALOG adjustable scale
- HUB Connection (external MICROTECH Wireless device connection)
- 2D Connection possibilities (external device Wireless connection and indication)
- 5 axis Touch-probe with color indication
- internal MEMORY for 2000 values with Folders system and statistic,
- LIMITS (Go/NoGo) function with color indication,
- PEAK (Max/min),
- TIMER
- FORMULA Ax2+Bx+C
- Manual TEMPERATURE COMPENSATION
- LINEAR compensation
- RESOLUTION selection 0.1/0.01/0.001, 0.0005 mm also in inches
- CALIBRATION date control
- Rechargeable Li-Pol battery with micro-USB socket
- FIRMWARE Update with USB cable
- WIRELESS long range data transfer to MICROTECH MDS app for Windows, Android, iOS (FREE versions). Download MICROTECH MDS app from Link to MDS app’s
- WIRELESS HID data transfer to any system and app (keyboard mode) with data config possibilities
- USB HID data transfer to any system and app (keyboard mode) with data config possibilities
All MICROTECH height gauges has hand finished measuring surfaces (Ra<0,32) and pass metrological control in ISO 17025 ILAC accredited laboratory.
It’s POSSIBLE TO ADD EXTRA FUNCTIONS & FORMULAS TO INDUSTRY 4.0 HEIGHT GAUGES FOR CUSTOMER REQUEST
It’s POSSIBLE TO ADD EXTRA FUNCTIONS & FORMULAS TO INDUSTRY 4.0 HEIGHT GAUGES FOR CUSTOMER REQUEST
Additional information
| Resolution, mm | |
|---|---|
| Data output | |
| Meas. range |
