MetroX APP for WINDOWS

Description

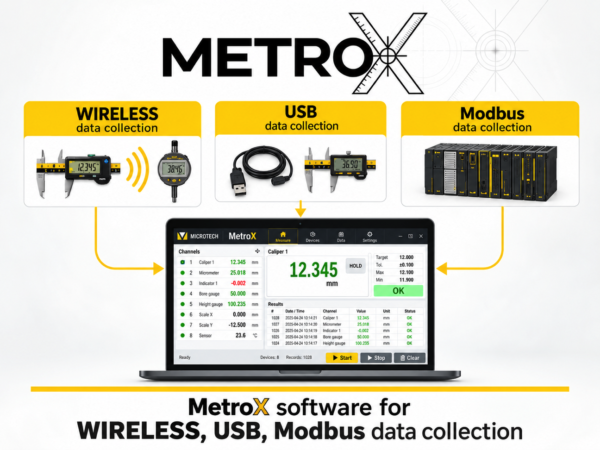

MetroX is a Windows application for centralized measurement data collection, statistical analysis and instrument control. It combines measuring instruments connected through wireless, USB, proximity cable and MODBUS interfaces within one configurable workspace.

The software automatically connects to compatible instruments, synchronizes readings and records measurement results. Operators can monitor several measuring points simultaneously, apply tolerances and formulas, view Go/NoGo results, create graphs and export collected data for further processing.

MetroX supports MICROTECH DataMet and SwissMet instruments, MODBUS measuring devices, Sylvac Bluetooth and proximity instruments, and compatible wireless or USB HID instruments.

Data Collection and Monitoring

MetroX provides the tools required for individual inspection stations and multi-instrument measuring systems:

• Automatic instrument connection
• Synchronized data reading
• Individual and synchronized timers
• ZERO setting
• Connection status monitoring
• Remote instrument control
• Go/NoGo evaluation
• Peak value monitoring
• Basic and extended formulas
• Graphical data display
• Basic statistics and extended SPC
• Part serial number and barcode scanning
• Calibration status control
• Point-cloud collection and export

Optional DataMet buttons and footswitches can be used to collect readings or set connected instruments to zero.

Data Export and Integration

Collected results can be exported in CSV, PDF and XLS formats. MetroX can also transfer data online to external applications and networks, including Excel, SAP and SolidWorks.

The data format can be configured for the receiving application, including decimal separators, symbols and other output parameters.

Advanced editions support:

• PLC integration through MODBUS RTU
• Industrial Digital I/O control
• External application integration
• API access
• Control plans with drawing or photo guidance
• Automated measurement and camera modules

Available Editions

MetroX FREE – 299100700

The free edition is intended for testing, individual users and compact measuring workstations.

• Maximum 2 connected instruments
• Up to 2 MODBUS instruments
• Up to 2 DataMet or SwissMet wireless instruments
• Up to 2 SwissMet proximity instruments
• Up to 2 Sylvac Bluetooth or proximity instruments
• Up to 2 wireless HID instruments
• Up to 2 USB HID instruments
• Go/NoGo and peak functions
• Basic formula mode
• ZERO setting and synchronization
• Individual and synchronized timers
• Remote instrument control
• Graphics and basic statistics
• PDF and CSV export
• Free software download

MetroX CORE – 299100710

The CORE edition is designed for professional inspection stations with several measuring instruments.

• Maximum 8 connected instruments
• Up to 8 instruments of each supported connection type
• All essential measurement and synchronization functions
• Basic formula mode
• Graphics and basic statistics
• PDF and CSV export
• Data re-export to external applications

Choose CORE for a standard multi-instrument workstation that requires automatic data collection and transfer to other software.

MetroX MULTI – 299100730

The MULTI edition supports larger inspection systems and introduces industrial control functions.

• Maximum 24 connected instruments
• Up to 20 MODBUS instruments
• Up to 24 DataMet or SwissMet wireless instruments
• Up to 20 proximity, wireless HID or USB HID instruments
• PLC integration through MODBUS RTU
• Industrial Digital I/O control
• Extended formula mode
• Serial number and barcode scanning
• Data re-export to external applications
• Optional USB camera connection
• Optional motorization module

Choose MULTI for multi-point inspection, production monitoring and semi-automated measuring stations.

MetroX EXPERT – 299100750

The EXPERT edition adds advanced quality-control, SPC and automation capabilities.

• Maximum 64 connected instruments
• Up to 60 MODBUS instruments
• Up to 64 DataMet or SwissMet wireless instruments
• Up to 40 SwissMet or Sylvac proximity instruments
• Up to 20 wireless HID and 20 USB HID instruments
• Calibration status control
• Control plans with drawing or photo guidance
• Extended SPC module
• Point-cloud collection and export
• PLC and Digital I/O integration
• Optional camera and motorization modules

Choose EXPERT for advanced measuring systems, automated inspection stations and professional quality-control departments.

MetroX FACTORY – 299100770

The FACTORY edition is designed for factory-wide data collection and integration.

• Maximum 400 connected instruments
• Up to 247 MODBUS instruments
• Up to 100 DataMet or SwissMet wireless instruments
• Up to 100 SwissMet or Sylvac proximity instruments
• Up to 60 wireless HID and 60 USB HID instruments
• Full SPC and calibration-control functionality
• Control plans with visual guidance
• Point-cloud collection and export
• PLC and Industrial Digital I/O integration
• API for integration with external systems
• Optional camera and motorization modules

Choose FACTORY for centralized measurement networks, production lines and integration with factory information systems.

Wireless Connection

Up to four compatible wireless instruments can be connected through the computer’s built-in wireless module without an additional USB dongle. An optional MICROTECH USB dongle is required for larger wireless configurations.

Optional Modules and Accessories

Depending on the selected edition and application, MetroX can be expanded with:

• MODBUS Receiver for MODBUS instruments and PLC integration
• Industrial Digital I/O module
• MICROTECH USB wireless dongles
• DataMet data buttons
• Wireless or USB footswitches
• USB camera module for image capture and documentation
