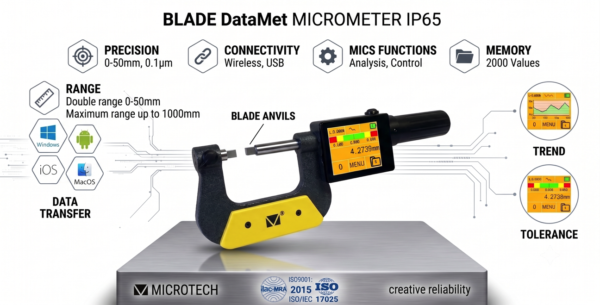

DataMet computerized Blade Double range micrometer

Description

MICROTECH manufacturing computerized Blade Double range micrometer with non-rotating spindle adopted to Industry 4.0

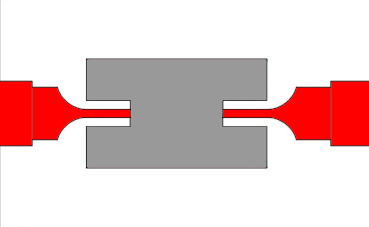

DataMet blade micrometers are using computerized measuring system developed and patented by MICROTECH (Patents UA126928, UA99686) with 0.0005 mm resolution and blade measuring anvils 6.5 x 0.75 mm for measuring narrow grooves, keyways, slots and other features that are not accessible for standard flat anvil micrometers.

MICROTECH wide range blade micrometer has 0-50 mm (0-2 inch) range that cover double measuring range with non-rotating spindle. Available in 19 ranges from 0-50 mm up to 950-1000 mm.

Hi-res 2.4” color Touchscreen display with IP65 protection class.

TABLET measuring module of micrometer has such functions:

• ON-line GRAPHICAL mode
• Color ANALOG adjustable scale
• HUB Connection (external MICROTECH Wireless device connection)
• 2D Connection possibilities (external device Wireless connection and indication)
• PROBE connection (external indicator or lever indicator Wireless connection) with AUTO mode
• internal MEMORY for 2000 values with Folders system and statistic,
• LIMITS (Go/NoGo) function with color indication,
• PEAK (Max/min),
• TIMER
• FORMULA Ax2+Bx+C
• Manual TEMPERATURE COMPENSATION
• LINEAR compensation
• RESOLUTION selection 0.1/0.01/0.001/0.0005 mm also in inches
• CALIBRATION date control
• Rechargeable Li-Pol battery with micro-USB socket
• FIRMWARE Update with USB cable
• WIRELESS long range data transfer to MICROTECH MDS app for Windows, Android, iOS (FREE versions).
• WIRELESS HID data transfer to any system and app (keyboard mode) with data config possibilities
• WIRELESS HID+MAC data transfer to any system and app (keyboard mode) with MAC address
• Optional MODBUS PLC data output (4 wire, RS-485) with data config possibilities
• USB HID data transfer to any system and app (keyboard mode) with data config possibilities

All MICROTECH micrometers has hand finished measuring surfaces (Ra<0,32) and pass metrological control in ISO 17025 ILAC accredited laboratory.

IT’S POSSIBLE TO ADD EXTRA FUNCTIONS & FORMULAS TO INDUSTRY 4.0 MICROMETERS FOR CUSTOMER REQUEST
