Laser Gun Barrel Bore Gauge | MICROTECH
From 8.950,00 €
High-precision pistol-grip laser bore gauge for artillery, tank guns, and industrial tubes. Measures lands and grooves up to 12m deep. Includes IP67 PC & MetroX VISOR.
*taxes are not included
- Description
- Technical data
- PDF-Datasheet
Description
The MICROTECH Laser Gun Barrel Bore Gauge is an advanced, ergonomic pistol-grip measurement system engineered specifically for the defense industry and heavy engineering. Designed for the comprehensive internal inspection of artillery systems, tank guns, mortars, and deep industrial tubes, this tool provides simultaneous dimensional measurement and high-definition visual defect control. Powered by the intelligent MetroX VISOR ecosystem, it delivers uncompromising accuracy in the harshest environments.
Key Features & Advantages:
Key Features & Advantages:

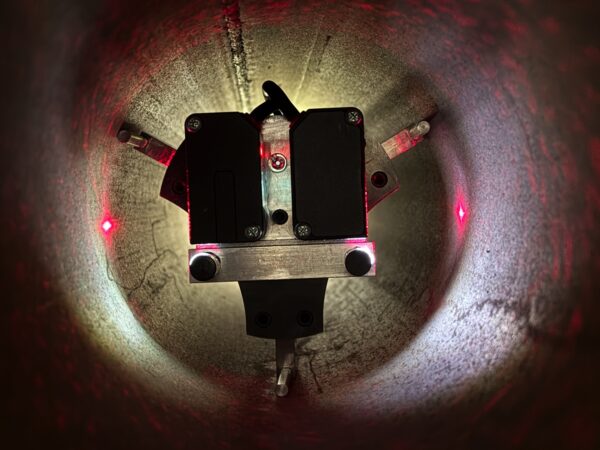

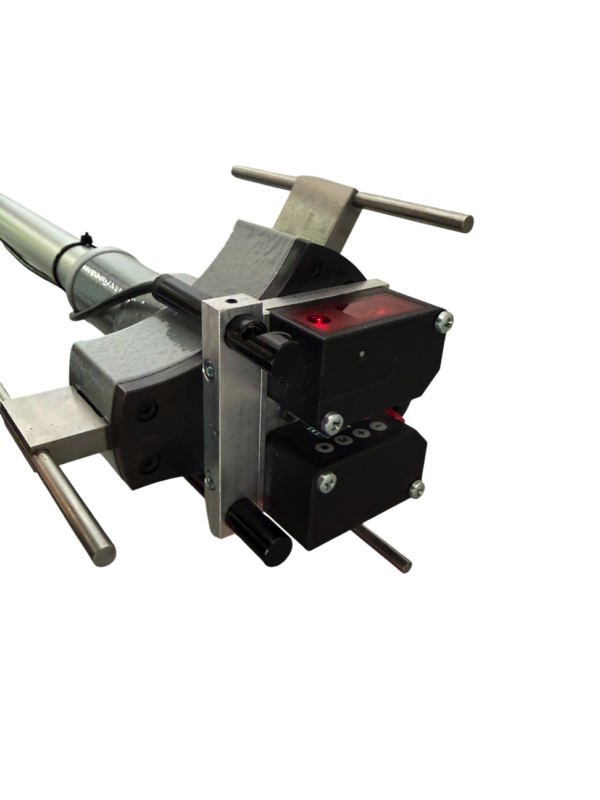

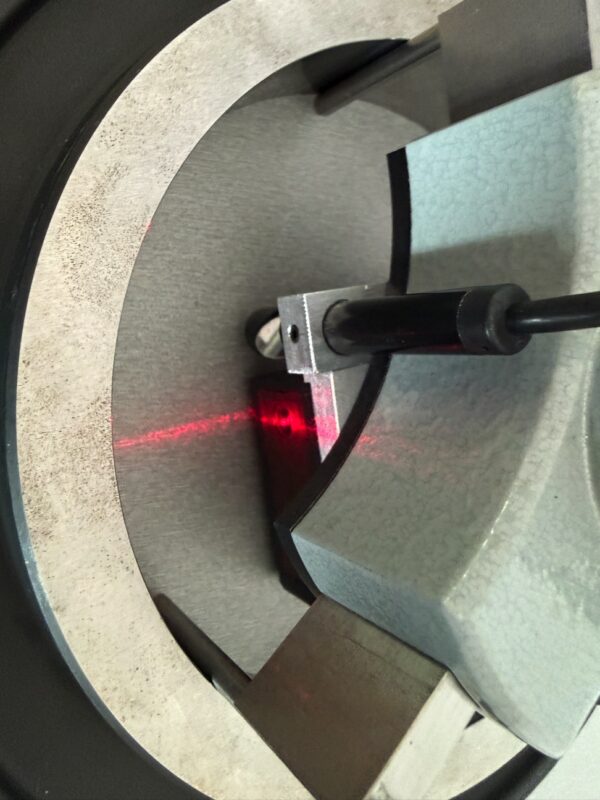

- Dual Laser 3-Point Measuring Head: The specialized dual-laser head features a self-centering 3-point positioning system. This ensures the gauge remains perfectly aligned along the barrel’s axis, providing highly accurate measurements of lands, grooves, and internal geometrical forms.
- Extreme Depth Capability: Built for large calibers (e.g., 120mm, 155mm, 203mm), the measuring range is fully customizable from 100 mm to 300 mm, with the ability to penetrate barrel depths of up to 12 meters.
- Integrated Visual Inspection: Equipped with two compact autofocus cameras and brilliant LED lighting. This allows operators to visually inspect the internal surfaces for erosion, microcracks, and wear in real-time alongside dimensional data.

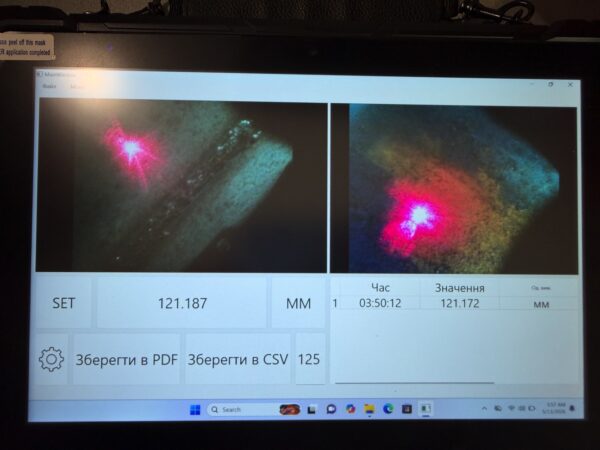

- Rugged Industry 4.0 Interface: The system is controlled via an industrial-grade, fully waterproof IP67 Touchscreen Windows PC. Combined with the MetroX VISOR software, it automates data collection, generates 3D profiles, and exports digital reports directly to enterprise databases.
- Certified Metrological Traceability: Every unit is supplied with an official calibration certificate according to ISO/IEC 17025 (ILAC MRA compliant), ensuring global acceptance of your measurement results.
Technical Specifications:
- Measuring Range: Customizable from 100 mm to 300 mm
- Maximum Depth: Up to 12 meters
- Positioning: 3-point self-centering head
- Measurement Technology: Dual Laser + Optical (2x Autofocus Cameras with LED)
- Control Unit: Industrial Waterproof IP67 Touchscreen PC
- Software: MetroX VISOR System
- Certification: ISO 17025 Calibration Certificate (ILAC MRA)
Additional information
| Range, mm/Max Depth, mm | 115-125/1000, 115-125/3000, 115-125/6000, 150-160/1000, 150-160/3000, 150-160/6000, 166-176/6000, 166-176/11000, 200-210/8000, 200-210/12000, 235-245/6000 |
|---|---|
| Resolution, mm |
