Tablet sub-micron micrometers set Industry 4.0
1499,00 € – 7220,00 €
Tablet micrometers are using computerized measuring system developed and patented by MICROTECH (Patents UA126928, UA99686) with 0.1 micron resolution
*taxes are not included
- Description
- Technical data
- PDF-Datasheet
Description

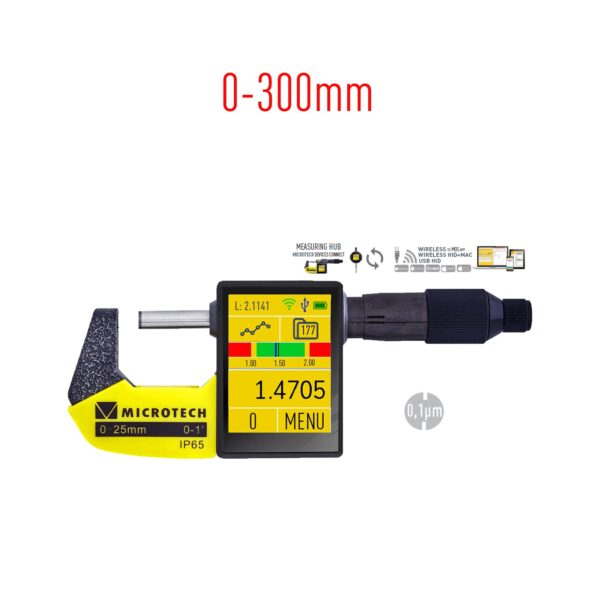

MICROTECH manufacturing Tablet Sub-micron micrometer set
Tablet micrometers are using computerized measuring system developed and patented by MICROTECH (Patents UA126928, UA99686) with 0.1 micron resolutionTABLET measuring module of micrometer has such functions :
Tablet micrometers are using computerized measuring system developed and patented by MICROTECH (Patents UA126928, UA99686) with 0.1 micron resolutionTABLET measuring module of micrometer has such functions :
- ON-line GRAPHICAL mode
- Color ANALOG adjustable scale
- HUB Connection (external MICROTECH Wireless device connection)
- 2D Connection possibilities (external device Wireless connection and indication)
- PROBE connection (external indicator or lever indicator Wireless connection) with AUTO mode
- internal MEMORY for 2000 values with Folders system and statistic,
- LIMITS (Go/NoGo) function with color indication,
- PEAK (Max/min),
- TIMER
- FORMULA Ax2+Bx+C
- Manual TEMPERATURE COMPENSATION
- LINEAR compensation
- RESOLUTION selection 0.1/0.01/0.001/0.0001 mm also in inches
- CALIBRATION date control
- Rechargeable Li-Pol battery with micro-USB socket
- FIRMWARE Update with USB cable
- WIRELESS long range data transfer to MICROTECH MDS app for Windows, Android, iOS (FREE versions). Download MICROTECH MDS app from Link to MDS app’s
- WIRELESS HID data transfer to any system and app (keyboard mode) with data config possibilities
- Optional MODBUS PLC data output (4 wire, RS-485) with data config possibilities
- USB HID data transfer to any system and app (keyboard mode) with data config possibilities
All MICROTECH micrometers has hand finished measuring surfaces (Ra<0,32) and pass metrological control in ISO 17025 ILAC accredited laboratory.
IT’s POSSIBLE TO ADD EXTRA FUNCTIONS & FORMULAS TO INDUSTRY 4.0 MICROMETERS FOR CUSTOMER REQUEST
Additional information
| Resolution, mm | |
|---|---|
| Meas. range | 0-150 mm / 6 inch, 0-300 mm / 12 inch, 0-200 mm / 8 inch, 0-400 mm / 16 inch, 0-100 mm / 4 inch |
